CNSL Mortar
CNSL Mortar
Application
This Mortar is used widely for acid proof brick lining in reaction vessel, storage tank, floor, effluent treatment plant, filtration area in chemical, Pharma Chemical, fertilizer, dyestuff industries, metal industries etc.
Application Industries:
- Iron & Steel
- Non-ferrous
- Petrochemical
- Glass Industry
- Oil Industry
- Chemical Industry
Chemical Resistance
It is resistant to wide range of acids & alkalis. It provides resistance to HF & nitric acid up to 40% cone, (carbon filled). It is not recommended where organic solvents are used. It is resistant to sulphuric acid up to cone, of 70 %. It does not resist aromatic Hydro Carbon.
Physical Property
|
|
|
|---|---|
|
Color
|
Black
|
|

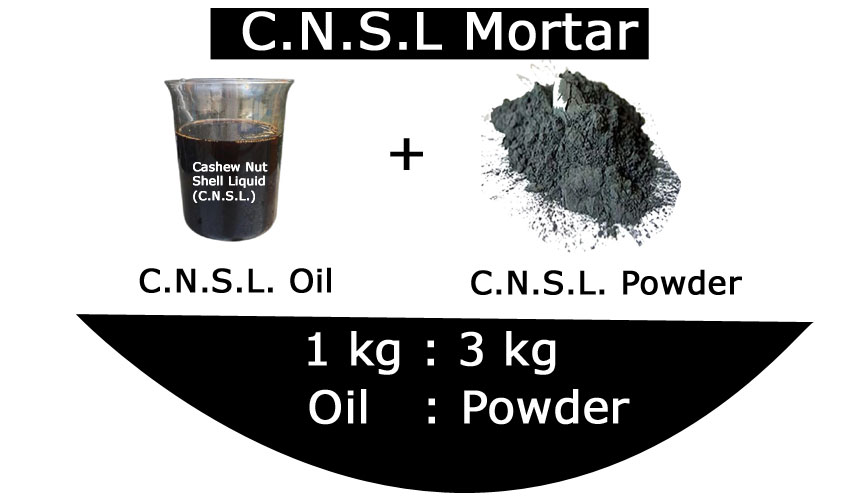

Mixing Ratio
|
3:1 (Powder:Oil)
|
|
Density
|
1500kg/m3
|
|
Compressive strength
|
>100 Kg/Cm2
|
|
Tensile strength
|
>5 Kg/Cm2
|
|
Flexural strength
|
>20 Kg/Cm2
|
|
Maximum Water Absorption
|
below 1 %
|
|
Maximum Service Temperature
|
175° C
|
|
Working Time (Room temp.)
|
< 20 Minutes
|
|
Setting Time
|
16-20 Hours
|
PACKING

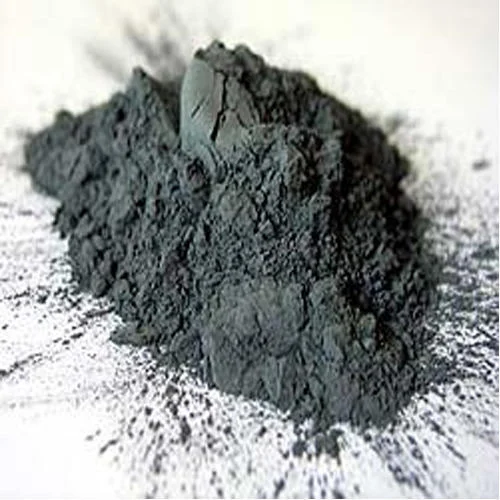

Powder :
25 kgs,37.5 kgs, 50 kgs in LDPE Bags
PACKING
Oil :
25 kgs, 200 kgs, 250 kgs in Drum
Storage & Shelf Life
Always keep solution and powder in cool, dry place and away from direct
sunlight, moisture etc.
If stored in sealed container as above,
shelf life of Oil : 6 Months. Powder: 6 Months. During storage & transportation must be
protected from contact with water.
